Latest Images of the Atlanta Rolling Mill

Amazing in that five months have passed, I have had the least amount of work and NO POSTS! I decided to at the least share a few photos of the current state of the mill.

The primary source for the interior detailing comes from this painting by Menzel:

One of the first interior elements were 3D printed by my good friend, and ACWRR member, Gerry Dykstra. He fashioned rollers that are a visual feature for this model.

This is one of many images Gerry sent to me and was the basis for his 3D printed roles:

These are the results of his printer. I add the bracing, stanchions and drive shafts all from brass rod and tubing.

Another massive machine was the steam hammer. Here is another image, compliments to Gerry's research, that was the template for the model I scratch built.

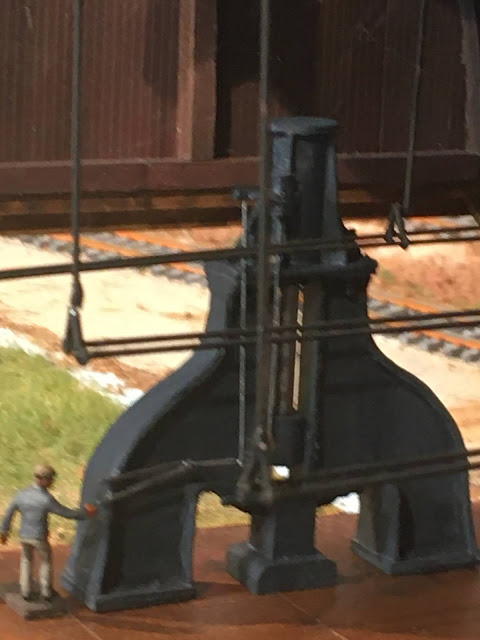

After scrapping the first attempt, due to oversize measuring on my part, this is the final completed model. The horizontal and vertical rods are the truss rods that kept the walls together.

Constructing the Bow Trusses were a tedious process. Here are two photos...

Adding additional details including figures, this is it's current state...

If you look closely, I fabricated aprons on several workers tending the rollers. These were formed with very old toothpaste tubes that used to made from metal. Initially I was using these to create flags, about 40 years ago.

I attached BTS tongs to figures that just happened to have their arms in the right position. Although I have altered figures arms, etc., I prefer to find figures that are close to or happen to have just the right position. These are a combination of Musket Miniatures, Prieser and Model Power.
